Characteristics of Mosfet-Get All Details

The static characteristics of power MOSFET are now described briefly. The basic circuit diagram for n-channel power MOSFET is shown in Fig. where voltages and currents are as indicated.the most popular type of transistor used in modern electronics! From its common uses to its electrical characteristics, explore the possibilities with MOSFETs Today.

The metal-oxide-semiconductor field-effect transistor (MOSFET) is an important component in many types of electronic devices. It is used in power supplies, current amplifiers, and even motor control. Understanding the characteristics of MOSFETs can help you unlock their potential and improve the performance of your electronics.

One of the most important characteristics of MOSFETs is their ability to conduct a high current with a low voltage drop. This means that the device can provide high current at a low voltage, making it ideal for power supplies and motor control.

MOSFETs also have a low input capacitance. This means that they can be used to quickly respond to changes in input signals. This makes them well-suited for use in high-frequency signal processing, such as in audio systems.

Another key characteristic of MOSFETs is their low switching losses. This means that they can be used to switch currents on and off quickly, which is important for applications such as motor control.

Finally, MOSFETs are also highly efficient. This means that they can convert a high voltage input into a lower voltage output with minimal losses. This makes them well-suited for use in power-saving applications, such as LED lighting.

These are just some of the characteristics of MOSFETs that make them so useful in a wide variety of applications. By understanding their capabilities, you can unlock their potential and improve the performance of your electronic.

The static characteristics of power MOSFET are now described briefly. The basic circuit diagram for n-channel power MOSFET is showing in fig

where voltages and currents are as indicated.

The characteristics of a MOSFET include:

1. Gate voltage: The gate voltage controls the conductivity of the channel between the source and drain terminals. When the gate voltage is zero, the channel is in its "off" state, and the MOSFET does not conduct current. When a positive voltage is applied to the gate, the channel becomes more conductive, allowing current to flow between the source and drain.
2. Drain-source voltage: The drain-source voltage is the voltage applied between the drain and source terminals. When the MOSFET is in its "off" state, there is no current flow between the drain and source. As the drain-source voltage is increased, the MOSFET eventually enters its "saturation" region, where the drain current becomes independent of the drain-source voltage.
3. Drain current: The drain current is the current flowing through the MOSFET between the drain and source terminals. When the MOSFET is in its "off" state, the drain current is zero. As the gate voltage is increased, the drain current also increases until the MOSFET enters its saturation region.
4. Threshold voltage: The threshold voltage is the minimum gate voltage required to turn the MOSFET on. It is the voltage at which the MOSFET just starts to conduct current between the source and drain terminals.
5. On-resistance: The on-resistance is the resistance of the MOSFET when it is conducting current. It is a measure of the MOSFET's efficiency as a switch.
6. Capacitances: MOSFETs have three capacitances that affect their performance: gate-to-source capacitance (Cgs), gate-to-drain capacitance (Cgd), and drain-to-source capacitance (Cds). These capacitances affect the MOSFET's switching speed and its ability to handle high frequencies.

Understanding these characteristics is important for designing and using MOSFETs in electronic circuits.

The characteristics of a MOSFET can be divided into three categories: DC, small-signal, and large-signal.

1.DC characteristics:

A. Drain current vs. Drain-to-Source voltage (I-V curve): This curve shows the relationship between the drain current and the voltage applied between the drain and source terminals of the MOSFET. The MOSFET operates in three regions: the cut-off region (V_DS < V_GS - V_TH), the linear or ohmic region (V_DS > V_GS - V_TH), and the saturation region (V_DS >= V_GS - V_TH).

Transfer Characteristics of Mosfet

B. Transfer characteristics (I-V curve): This curve shows the relationship between the gate-to-source voltage and the drain current. It is used to determine the threshold voltage (V_TH) of the MOSFET. This characteristic shows the variation of drain current ID as a function of gate-source voltage VGS.

 It is seen that there is threshold voltage VGST below which the device is off. The magnitude of VGST is of the order of 2 to 3 V.

The transfer characteristics of a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) represent the relationship between the input voltage applied to the gate of the device and the resulting output current flowing through the drain and source terminals of the MOSFET. The transfer characteristics can be represented graphically using a plot of drain current (ID) versus gate-source voltage (VGS) for a constant drain-source voltage (VDS).

In the transfer characteristics of a MOSFET The Threshold Voltage (Vth) is the gate-to-source voltage at which the MOSFET just starts to conduct current between the drain and source. Below the threshold voltage, the MOSFET is in cutoff mode and the current between the drain and source is negligible. Above the threshold voltage, the MOSFET is in saturation mode and the current between the drain and source increases with increasing gate-to-source voltage.

The value of the threshold voltage depends on the particular MOSFET and its fabrication process, and it can be positive or negative. For a p-channel MOSFET, the threshold voltage is typically negative, while for an n-channel MOSFET, the threshold voltage is typically positive.

The threshold voltage is an important parameter in MOSFET circuit design, as it determines the voltage level at which the MOSFET will start to conduct and the amount of voltage that needs to be applied to the gate to achieve a desired level of current flow between the drain and source.

The transfer characteristics of a MOSFET can be classified into three regions:

1. Cut-off Region: When the gate-source voltage (VGS) is less than the threshold voltage (Vth), the MOSFET is in the cut-off region, and no current flows between the drain and source terminals of the device.
2. Triode Region: When the gate-source voltage (VGS) is greater than the threshold voltage (Vth) but less than the gate-source voltage required to create a channel from source to drain, the MOSFET is in the triode region. In this region, the drain current (ID) is proportional to the gate-source voltage (VGS), and the MOSFET acts as a voltage-controlled resistor.
3. Saturation Region: When the gate-source voltage (VGS) is large enough to create a channel from source to drain, the MOSFET is in the saturation region. In this region, the drain current (ID) remains constant with further increases in gate-source voltage (VGS), and the MOSFET acts as a current-controlled switch.

The transfer characteristics of a MOSFET can also be affected by other parameters such as temperature, bias voltage, and device size. Therefore, it is essential to consider these factors while designing and using MOSFETs in practical applications.

C. Gate-to-Source voltage vs. Drain current (I-V curve): This curve shows the relationship between the gate-to-source voltage and the drain current for a fixed value of drain-to-source voltage. It is used to determine the MOSFET's transconductance (gm).

2.Small-signal characteristics:

A. Transconductance (gm): It is the ratio of the change in drain current to the change in gate-to-source voltage for a small signal.

B. Input capacitance (Ciss): It is the capacitance between the gate and source terminals of the MOSFET.

C. Output capacitance (Coss): It is the capacitance between the drain and source terminals of the MOSFET.

D. Reverse transfer capacitance (Crss): It is the capacitance between the gate and drain terminals of the MOSFET.

Output Characteristics of Mosfet

E.MOSFET output characteristics:The output characteristics of a MOSFET describe the relationship between the output current and voltage as the input voltage is varied.

Power MOSFET output characteristics shown in

indicate the variation of drain current ID as a function of drain-source voltage VGS as a parameter. For low values of VDS the graph between ID -VDS is almost linear; this indicates a constant value of on-resistance RDS =VDS /ID . For given VGS, if VDS is increased, output characteristic is relatively flat indicating that drain current is nearly constant. A load line intersects the output characteristics at A and B. Here A indicates fully-on condition and B fully-off state. Power MOSFET operates as a switch either at A or at B just like a BJT.

There are two types of MOSFETs - enhancement mode and depletion mode - and their output characteristics differ slightly.

For an N-channel enhancement mode MOSFET, the output characteristics can be divided into three regions:

1. Cut-off region: When the input voltage is below the threshold voltage (Vt), the MOSFET is in cut-off region and no current flows through the channel.
2. Linear region: When the input voltage is above the threshold voltage and below the maximum gate voltage (Vgs), the MOSFET operates in the linear region, and the output current varies linearly with the input voltage.
3. Saturation region: When the input voltage is high enough to reach the maximum gate voltage, the MOSFET enters the saturation region, and the output current remains constant regardless of the input voltage.

For a depletion mode MOSFET, the characteristics are somewhat different, and the MOSFET is normally ON until a negative voltage is applied to the gate. The output characteristics of a depletion mode MOSFET can also be divided into three regions:

1. Saturation region: When a negative voltage is applied to the gate, the MOSFET operates in the saturation region, and the output current remains constant regardless of the input voltage.
2. Linear region: As the negative gate voltage increases, the MOSFET operates in the linear region, and the output current varies linearly with the input voltage.
3. Cut-off region: When the negative gate voltage reaches a certain level, the MOSFET enters the cut-off region, and no current flows through the channel.

In both types of MOSFETs, the output characteristics depend on various parameters such as the gate voltage, drain voltage, temperature, and other factors, and the characteristics can be modeled mathematically using equations and graphs.

The output characteristics of a MOSFET is a plot of the drain current (ID) versus the drain-to-source voltage (VDS) at various values of the gate-to-source voltage (VGS).

The MOSFET is a three-terminal device, where the gate terminal is used to control the flow of current between the source and drain terminals. The gate terminal is separated from the channel by a thin layer of oxide, which acts as an insulator. When a voltage is applied to the gate terminal, an electric field is created, which attracts or repels charge carriers in the channel, thereby controlling the flow of current.

The output characteristics of a MOSFET show how the drain current varies with the drain-to-source voltage at different gate-to-source voltages. The plot typically shows a family of curves, each corresponding to a different value of VGS. As VGS is increased, the curves shift upwards, indicating an increase in the drain current at a given VDS. At a certain value of VDS, called the saturation voltage (VDSat), the drain current reaches a maximum value and then becomes independent of VDS.

The output characteristics of a MOSFET are important in determining the operating regions of the device, such as the saturation region, linear region, and cutoff region. These regions are defined by the values of VGS and VDS, and they have different characteristics in terms of the behavior of the MOSFET. Understanding the output characteristics is essential in designing and analyzing MOSFET circuits for various applications.

3.Large-signal characteristics:

A. Drain-to-Source on-resistance (RDS(on)): It is the resistance of the MOSFET when it is in the saturation region.

B. Maximum Drain Current (ID(max)): It is the maximum current that the MOSFET can handle without being damaged.

C. Maximum Drain-to-Source voltage (VDS(max)): It is the maximum voltage that the MOSFET can handle without being damaged.

D. Power dissipation (P_D): It is the amount of power that the MOSFET can handle without being damaged.

Switching Characteristics of Mosfet

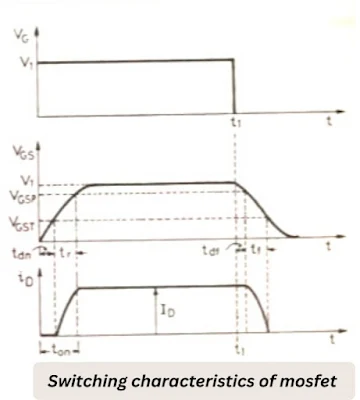

E.Mosfet switching characteristics:The switching characteristics of a MOSFET refer to how quickly it can turn on or off, and how much current it can handle while doing so.

The switching characteristics of a MOSFET are influenced to a large extent by the internal capacitance of the device and the internal impedance of the gate drive circuit. At turn-on, there is an initial delay tdn, during which input capacitance charges to gate threshold voltage VGST. Here tdn is called turn-on delay time. There is further delay tr. called rise time, during which gate voltage rises to VGSp , a voltage sufficient to drive the MOSFET into on state. During tr, drain current rises from zero to full on current ID.Thus, the total turn-on time is ton =tdn +tr. The turn-on time can be reduced by using low-impedance gate drive source.

As MOSFET is a majority carrier device, turn-off process is initiated soon after removal of gate voltage at time t1 The turn-off delay time, tdf is the time during which input capacitance discharges from overdrive gate voltage dot v1 to VGSP The fall time, tf is the time during which input capacitance discharges from VGSP to threshold voltage. During tp drain current falls from Id to zero. So when VGS <= VGST MOSFET turn-off is complete.

Power MOSFETs are very popular in switched mode power supplies. They are, at present, available with 500 V, 140 A ratings.

The following are the key switching characteristics of a MOSFET:

1. Turn-on time (t-on): The time it takes for the MOSFET to fully turn on once the gate voltage is applied.
2. Turn-off time (t-off): The time it takes for the MOSFET to fully turn off once the gate voltage is removed.
3. Rise time (t-rise): The time it takes for the MOSFET to transition from the 10% to 90% of its on-state voltage.
4. Fall time (t-fall): The time it takes for the MOSFET to transition from the 90% to 10% of its on-state voltage.
5. Switching time (t-sw): The time it takes for the MOSFET to switch from its on-state to off-state, or vice versa.
6. Input capacitance (Ciss): The capacitance between the gate and the source of the MOSFET, which affects the switching speed.
7. Output capacitance (Coss): The capacitance between the drain and the source of the MOSFET, which affects the switching speed.
8. Reverse transfer capacitance (Crss): The capacitance between the gate and the drain of the MOSFET, which affects the switching speed.

All these characteristics are important to consider when designing circuits that use MOSFETs, as they can affect the performance and reliability of the circuit.
